Description

The ultrasound electrotherapy device combines the therapeutic of ultrasound and electrical stimulation to promote healing and alleviate pain. It consists of 1cm² and 3cm² ultrasound applicators which emit the ultrasound waves to reach different depths of soft tissues electrical stimulation electrodes and vacuum electrodes which deliver electrical currents to specific areas of the body to aid in muscle rehabilitation and strengthening.

Features:

  • 3 Treatment Modality, Expanded Treatment Options: The device is designed with 2 channels for ultrasound therapy, 4 channels for electrotherapy, and 4 channels for vacuum therapy, which allows the individual use of each modality and the combination therapy of ultrasound and electrotherapy or ultrasound and vacuum therapy.
  • Intuitive 10.1’’ Touchscreen Interface: The touchscreen allows the easy setting of the treatment parameters and provides relevant information such as treatment time, intensity levels, and other parameters, which improves user-friendliness and allows for easy monitoring of the therapy.

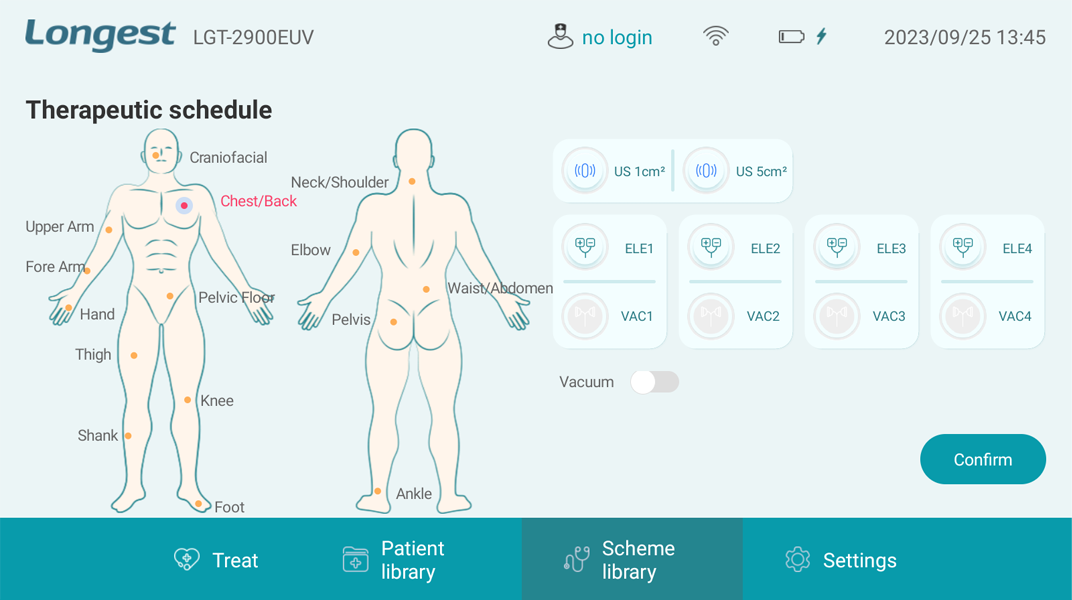

  • Preset Protocols: The device offers 42 ultrasound protocols, 57 electrotherapy protocols, and 25 combination therapy protocols designed for specific areas of the body. These protocols simplify the treatment process by providing recommended settings for optimal results.

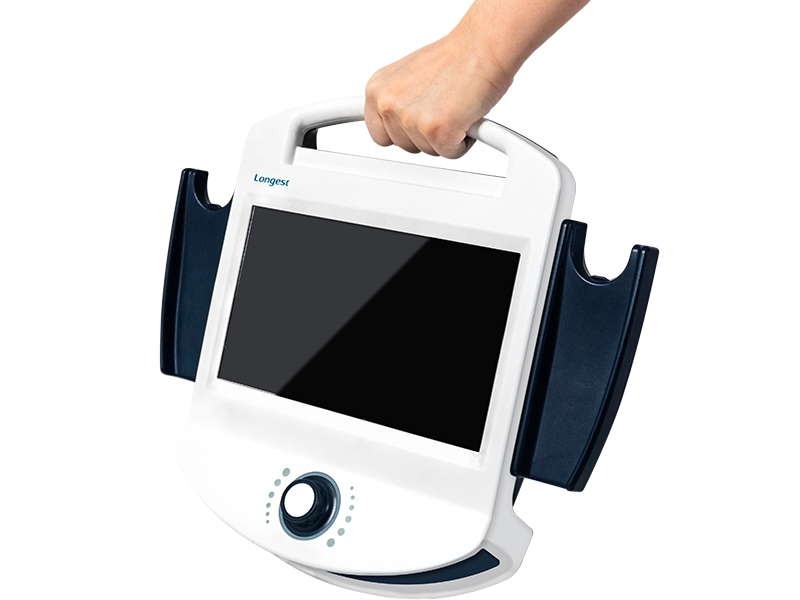

  • Increased Portability and Flexibility: The device uses a modular design. The ultrasound module can be removed and used independently. The battery-operated and compact design allows it to be used in various settings, including clinics, hospitals, and home environments.

Ultrasound Therapy

  • Pain relief
  • Tissue healing
  • Increased flexibility and range of motion
  • Reduction of scar tissue
  • Enhanced drug absorption

Electrotherapy

  • Instant pain relief
  • Muscle re-education and strengthening
  • Reverse of the inactivity of muscles to prevent muscle atrophy
  • Muscle tension and spasm reduction
  • Increased blood circulation

Vacuum Therapy

  • Cellulite reduction
  • Enhanced lymphatic drainage
  • Increased production of collagen and elastin production for skin tightening and toning
  • Muscle relaxation
  • Localized fat reduction
  • Improved local blood circulation

LGT-2900EUV is commonly used in physiotherapy chiropractic clinics, and sports medicine.

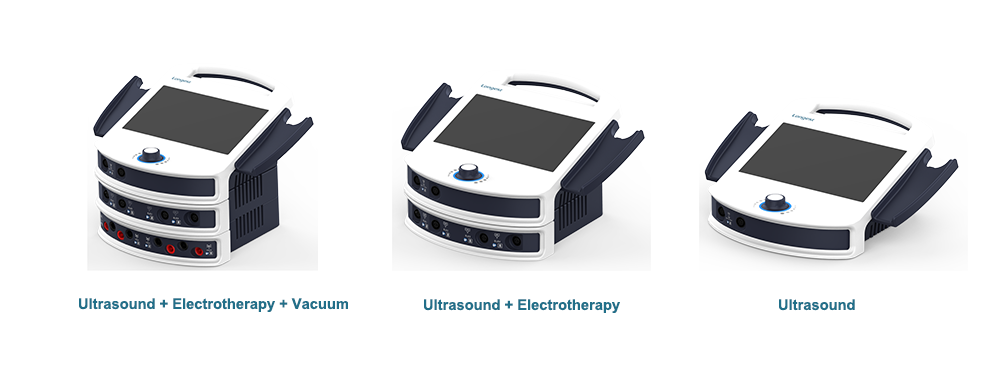

Modal

LGT-2900U

LGT-2900EU

LGT-2900EUV

Treatment

Ultrasound

Ultrasound Electrotherapy

Ultrasound, Electrotherapy, Vacuum Therapy

Dimensions

 379×310×146 mm

379×310×211 mm

379×310×261 mm

Weight

2.8kg

4.1kg

5.6 kg

Interface

10.1” touch screen

Power Supply

Battery: 11.1V, 9000mAh, lithium

AC 100-240V, 50/60 Hz

Standard Accessories

  • Power cord*1pc
  • 1 cm² Ultrasound applicator*1pc
  • 5cm²Ultrasound applicator*1pc
  • Electrode lead hose (light gray)*4pcs
  • Self-adhesive electrode (φ5.0 cm)*8 packs (4pcs/pack)
  • Silicon rubber electrode (40×60mm)*2 packs (4pcs/pack)
  • Sponge cover (40×60mm)*16pcs
  • Elastic Velcro strap (45×300)*8pcs
  • Elastic Velcro strap (90×1180)*4pcs
  • Vacuum lead hose (light gray) *4pcs
  • Vacuum electrode (Φ 60mm)*8pcs
  • Vacuum sponge (Φ 60mm)*16pcs



Optional Accessories

  • Self-adhesive electrode (40×60 mm)
  • Self-adhesive electrode (50×90 mm)
  • Self-adhesive electrode (80×130 mm)
  • Self-adhesive electrode (Ф32 mm)
  • Self-adhesive electrode (Ф50 mm)
  • Silicone rubber electrode (60×80 mm)
  • Silicone rubber electrode (80×120 mm)
  • Vacuum electrode (Φ 30 mm)
  • Vacuum electrode (Φ 90 mm)
  • Vacuum sponge (Φ 33 mm)
  • Vacuum sponge (Φ 93 mm)
  • Rechargeable battery module, 9000mAh

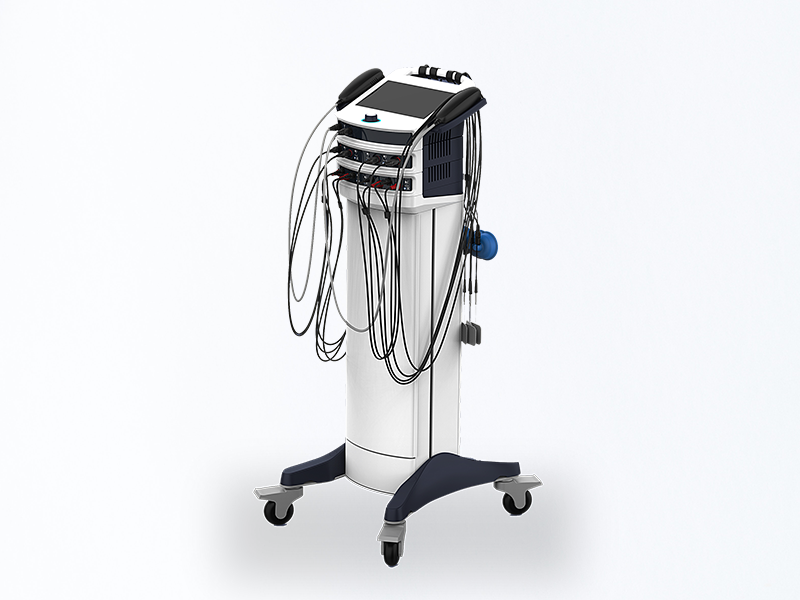

  • Carrying bag
  • Trolley
