Description

For Every Better You

It is comprised of an intermittent pneumatic controller (main unit), sleeves, and connection hose. The air inflates and deflates the sleeve sequentially to develop the circulating pressure on the human body when it functions.

It squeezes the proximal and distal limbs to promote blood circulation lymphatic system and improve body microcirculation. Hence, it is a terrific blood clot prevention machine.

It can prevent thrombus, reducing limbs drops, which is related to blood and lymph circulation directly or indirectly. DVT is one of the most common complications of bed rest, and prevention is urgently needed. LGT-2200DVT will be the best DVT compression machine choice to take precautions against DVT.

Fashionable & Portable Design

5″ touch screen: intuitive display providing quick and accurate operation

2.7 kg: portable size with back and side hook for convenient movement and placement

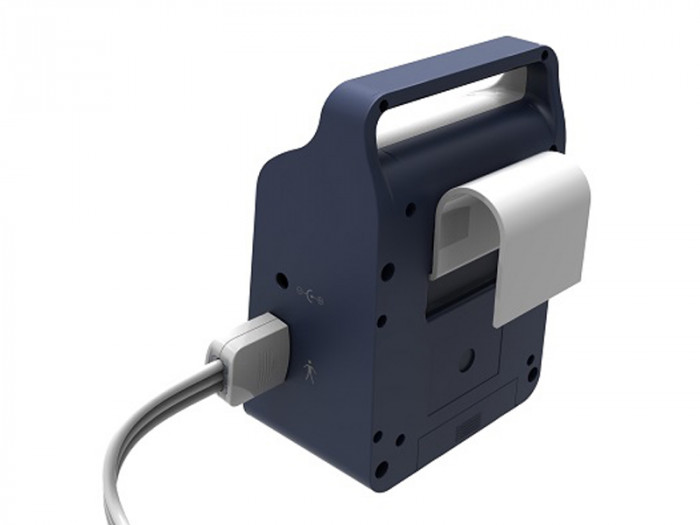

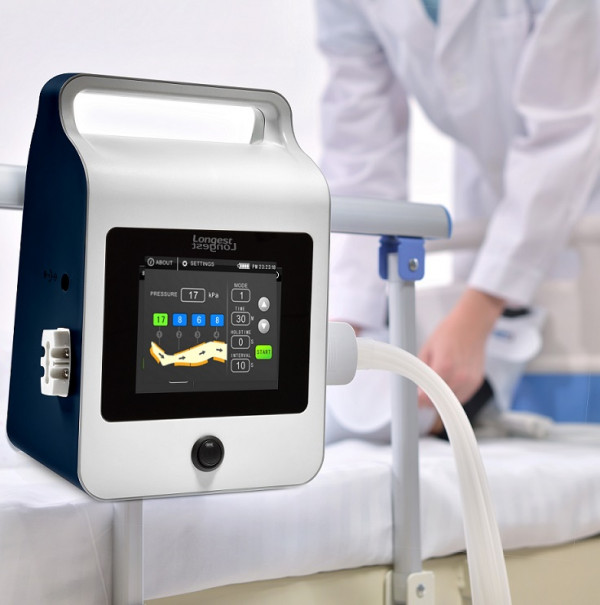

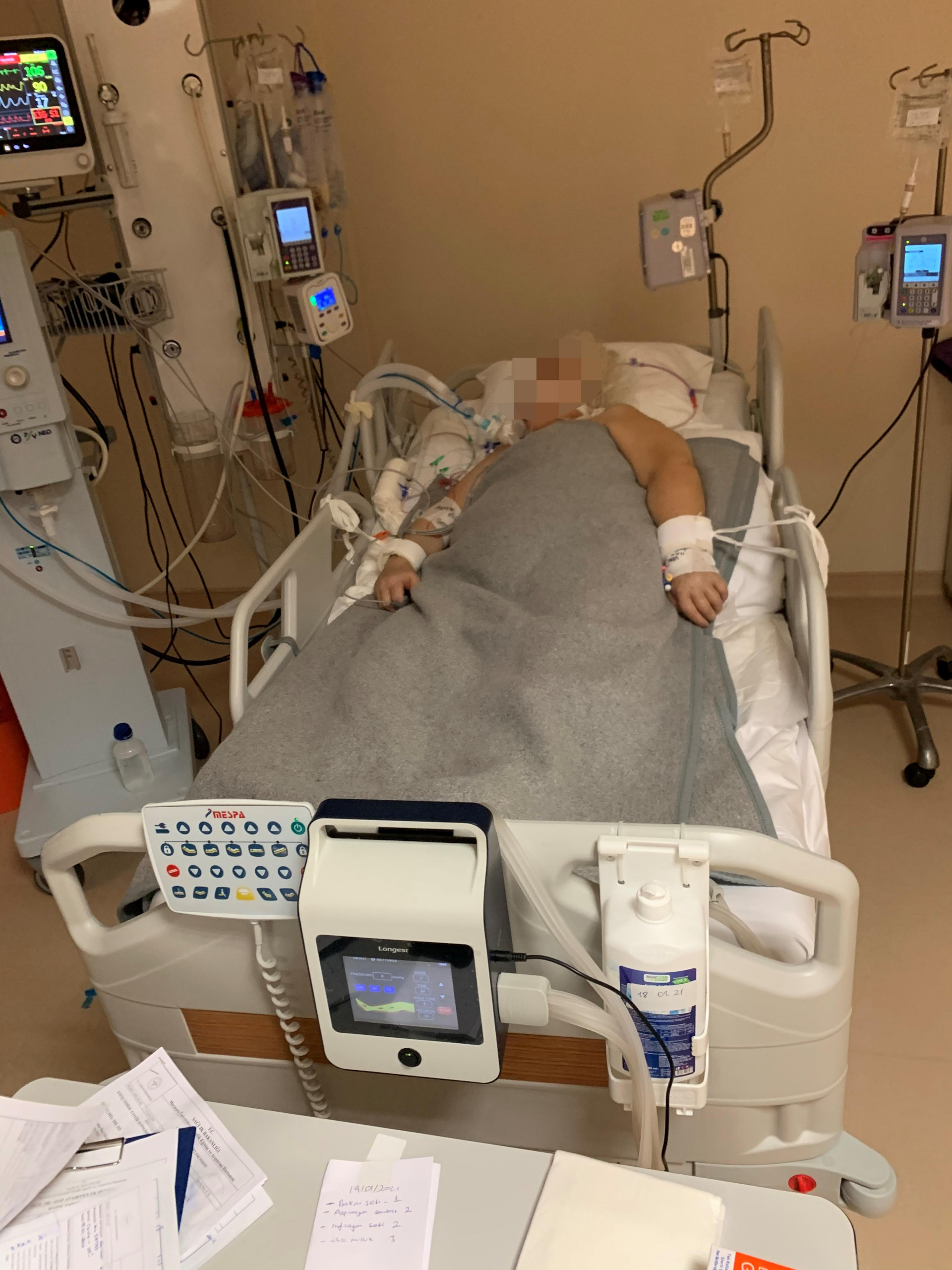

Pothook: hanging the device on the bedboard

Reusable & Disposable Sleeves with High-quality

High durability: disposable sleeves 5,000 times inflation and deflation tested; reusable sleeves 50,000 times tested

Premium materials: lightweight and breathable fabric providing maximum comfort

Various sleeve types: 1-3 chambers, reusable or disposable, including thigh-length sleeves, knee-length sleeves, thigh sleeves, calf sleeves, foot sleeves

Safe & Convenient Treatment

Single chamber control: adjustable pressure of every single chamber while running

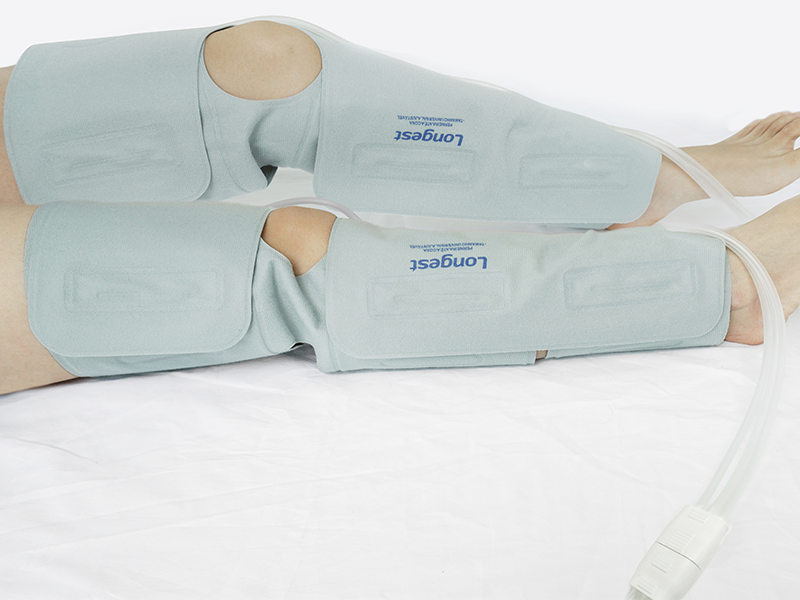

Wound avoiding: all the sleeves not covering knees or ankles, different chamber combination meeting all your needs

Pressure alarm: alarm higher or lower pressure assuring safe treatment

Auto screen lock: the screen will lock after 10s inactivity to avoid misoperation

Quick connector: slot design facilitating connection of the hose and sleeves

Four Modes & Comfortable Pressure

4 modes: matching all sleeves, from foot to thigh

Gradient pressure: 40-150 mmHg, satisfying versatile clinical needs

Rechargeable Battery, Long Time Operation

Rechargeable battery: 9000mAh, competitive electricity capacity in the market

Long-time operation: 1-24 hours or continuous, once and for all

OEM Available, After-sale Warranty

Two-year warranty for the device.

The device is customizable. You can customize the product in various ways, but the MOQ is required. Please contact us for more information.



INDICATIONS

Ⅰ. Improvement

  • Blood circulation
  • Diseases caused by interrupted blood circulation
  • Cellulitis fat dissolution
  • Pregnant woman’s limb treatment
  • Benumbed feet or hands
  • Cold feet or hands
  • Settlement of stress
  • Exercise effects
  • Insomnia
  • Heavy legs
  • Healthier body and elastic skin
  • Old age, weakness and fatigue

Ⅱ. Indications

  • Edema
  • Lymphedema
  • Phleboedema
  • Prevention of Deep Venous Thrombosis (DVT)
  • Post-thrombotic syndrome
  • Limb convulsion
  • Venosclerosis
  • Chronic venous insufficiency (CVI)
  • Post-mastectomy
  • Post-trauma
  • Spinal cord injury
  • Varicose veins
  • Sciatica
  • Sprains
  • Diabetes
  • Arterial insufficiency
  • Recovery after sports or surgery

CONTRAINDICATIONS

Patients with the following disease are forbidden to use:

  • Acute DVT
  • Erysipelas
  • Lymphangitis
  • Systemic decompensation
  • Pressure urticaria

Chamber 1-3
Compression Mode 4
Time Range 1-24 hours or continuous
Pressure Range 40-150mmHg
Hold Time 0-10s (step by 1s)
Interval Time 10-60s (step by 1s)
Interface 5″ OLED screen
Rechargeable Battery Yes (Lithium battery: 9000mAh)
Automatic Memory Yes
Dimension 15(L) × 18.4(W) × 25(H) cm
Standard Weight 2.7kg

Reusable Sleeves

PictureOrder NO.TypeChamber
22 0051Thigh Sleeve1

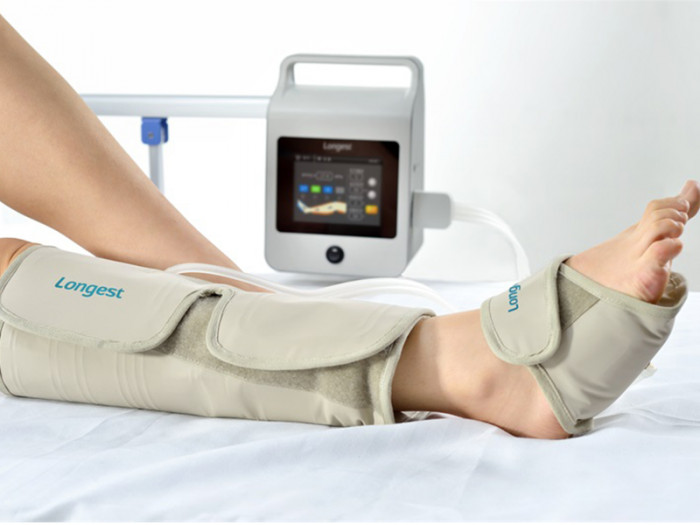

22 0052Calf Sleeve2
22 0053Foot Sleeve1



Disposable Sleeves (White)

PictureOrder NO.TypeChamberSize
220054WThigh Sleeve1S
220054MWThigh Sleeve1M
220054LWThigh Sleeve1L
220055WCalf Sleeve2S
220055MWCalf Sleeve2M
220055LWCalf Sleeve2L
220056WFoot Sleeve1S
220056MWFoot Sleeve1M
220056LWFoot Sleeve1L



Disposable Sleeves (Gray)

PictureOrder NO.TypeChamberSize
220096Thigh Sleeve1S
220096MThigh Sleeve1M
220096LThigh Sleeve1L
220094Calf Sleeve2S
220094MCalf Sleeve2M
220094LCalf Sleeve2L
220095Foot Sleeve1S
220095MFoot Sleeve1M
220095LFoot Sleeve1L
220092MThigh Length Sleeve3M
220092LThigh Length Sleeve3L

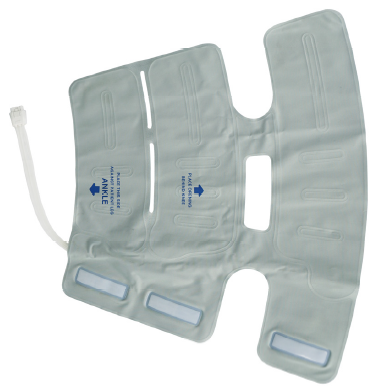

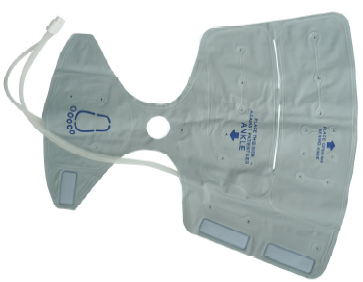

220093MCalf and Foot Sleeve3M
220093LCalf and Foot Sleeve3L



Connection Hoses

PictureOrder NO.NameApplicable Sleeves
220057Transparent connection hose (Single head
hose)		Reusable  Sleeves
220058Transparent connection hose (Double head
hose)		Reusable  Sleeves

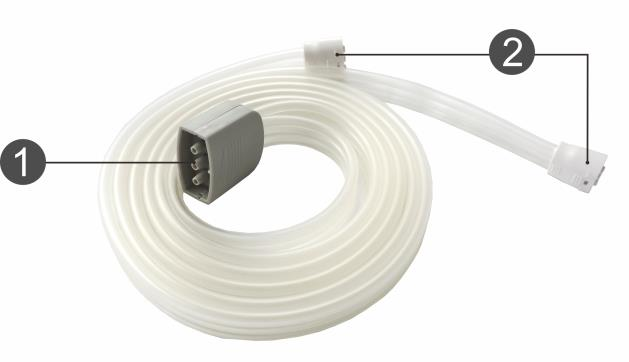

220030Connection hose with two 3-pin connectorsDisposable Sleeves

1. What are DVT and PE?

Deep vein thrombosis is the formation of a blood clot in a deep vein, most commonly the legs. Pulmonary embolism is a blockage of an artery in the lungs, which is caused by a substance moving from elsewhere in the body through the bloodstream. DVT often leads to PE and post-thrombotic syndrome (PTS). Severe cases significantly affect the quality of life and even lead to death.

2. How many treatment sessions could cure the indications?

The severity varies according to different patients, so it should be confirmed by a professional therapist.

3. What are the warning signs of DVT?

The warning signs of DVT include sudden swelling of the legs, warmness of skin, changes in the color of the legs, and pain or tenderness in an extremity or groin. If you suspect you have a DVT, send for a surgeon immediately. And if your surgeon considers that a DVT pump machine would help the treatment, the LGT 2201DVT would be your best choice.

4. How do compression devices help prevent DVT?

Compression devices with calf sleeves push blood from distal to proximal intermittently, which mimics ambulation (or moving about). The increase in blood flow keeps the blood from pooling (most often in the leg), causing it to clot.

The Longest DVT prevention machine has 4 compression modes and gradient pressure that ensures the patient achieves the optimal therapeutic and comfort during treatment.
