Description
High-Quality Components
Silent compressor: integrated KNF air compressor, providing you with quiet and comfortable treatment
Skillful accessories: high-quality workmanship of bullets and metal pipes, enabling the device to produce 2 million shocks
Large choice of transmitters: 3 vibration transmitters + 6 ballistic pneumatic transmitters (including Radial, Acupuncture, Deep and Focus, covering multiple sizes)
Air tank: invisible design ensuring stable output and portable style
Metal trolley: lightweight and fashionable trolley facilitating device removal
Ergonomic Handpiece
Comfort: special ergonomic grip and elimination of backward shocks bringing you the most comfortable experience on the market
Safety: the safety switch is set in handpiece button, and the working state of the interface is locked, effectively avoiding misoperation
Convenience: the removable handpiece is convenient for daily cleaning and maintenance
Vibration Therapy
Muscle relaxation: the vibration handpiece can relax muscle before and after treatment, thus enhancing the treatment effects
Various transmitters: available in 3 sizes (Ø 10 mm, Ø 25 mm, Ø 40 mm)
Preset & User-defined Protocols
Preset protocols: image-based treatment guidance, parameters based on clinical tests, one-touch-start treatment
User-defined protocols: support protocol setup, parameter adjustment & settings renaming
OEM Available, After-sale Warranty
Two years warranty.
The device is customizable. You can customize the product in various ways, but the MOQ is required. Please contact us for more information.
♦ INDICATIONS
Shoulder: calcifying supraspinatus tendinitis, subscapularis tendinitis(deltoid bursitis), frozen shoulder, biceps tendinitis
Lower limbs: patellar tendonitis, shin splints, Achilles tendonitis, plantar fasciitis, iliotibial band friction syndrome, anserine bursitis, trigger point
Torso: erector spinal pain, soft tissue pain, trigger point
Upper limbs: external humeral epicondylitis(tennis elbow), internal humeral epicondylitis(golf elbow), finger tendinitis, trigger point
Hip: the femoral greater trochanter pain syndrome, piriformis syndrome, sciatica, trigger point
♦ CONTRAINDICATIONS
Patients with the following conditions are forbidden to use:
- Pregnant woman
- Post-operation (wound, exudation)
- Osteoporosis
- Growing children
- Coagulation defects
- Bleeding tendency
- Patient with pacemaker
- Neoplasms
- Cutaneous infections
- Lung area
- Spine
- Cortisone therapy up to 6 weeks before the first treatment
- Mental disorder (unable to express or have difficulty in the communication)
Channel | 2 |
Compressor | Integrated air compressor (KNF from Germany) |
Interface | 7″ LCD touch screen |
Pressure Range | 1.0 – 5.0 bar (adjustable by 0.1 bar) |
Frequency Range | 1-22 Hz (General Handpiece) 1-35 Hz (Vibration Handpiece) |
Pulse | 1-8000 (General Handpiece) 1-10000 (Vibration Handpiece) |
Dimension | 39.5(L) × 56.5(W) × 19.4(H) cm |
Standard Weight | 11.3 kg |
Preset Protocols | Yes |
User-defined Protocols | Yes |
Languages | 10 (English, German, French, Italian, Spanish, Turkish, Portuguese, Polish, Dutch, Russian) |
STANDARD ACCESSORIES
Picture | Name | Quantity |
![]() | General Handpiece | 1 pc |

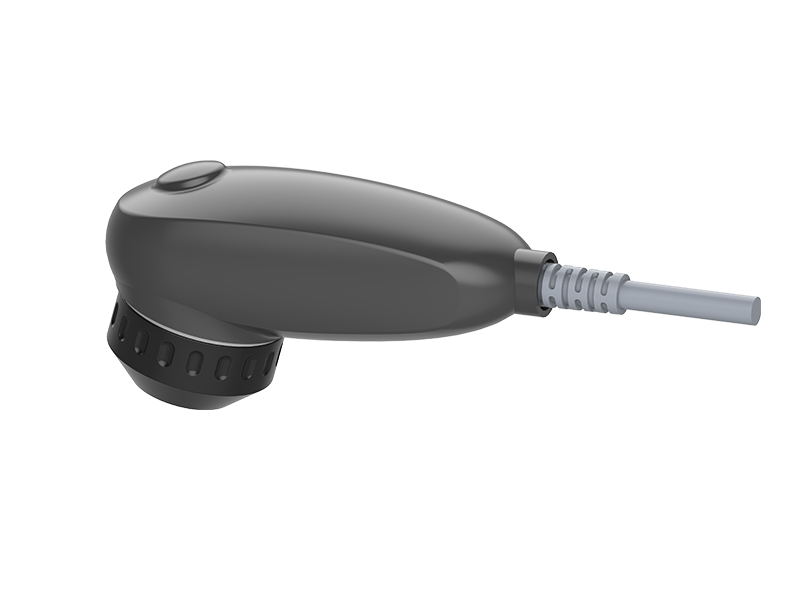

![]() | Vibration Handpiece | 1 pc |
![]() | 15mm Radial Transmitter | 1 pc |
![]() | 20mm Radial Transmitter | 1 pc |
![]() | 25 mm Vibration Transmitter | 1 pc |
![]() | Revision Kit | 2 pcs |
![]() | General Handpiece Kit | 1 set |
![]() | Vibration Handpiece Kit | 1 set |
OPTIONAL ACCESSORIES
Picture | Name | Quantity |
![]() | 6 mm Acupuncture Transmitter | 1 pc |
![]() | 15 mm Deep Transmitter | 1 pc |
![]() | 15 mm Focus Transmitter | 1 pc |
![]() | 36 mm Radial Transmitter | 1 pc |
![]() | 10 mm Vibration Transmitter | 1 pc |
![]() | 40 mm Vibration Transmitter | 1 pc |
![]() | Trolley | 1 pc |
![]() | Carrying Case | 1 pc |
1.What is the difference between ultrasound and shock wave therapy?
The ultrasound treatment is gentler compared to shock wave therapy. And it only consists of one frequency, while a shock wave is a wave group made up of various frequencies, wavelengths, and speeds.
Shock wave treatment is more effective and doesn’t need everyday use, but ultrasound is required to use every day for better results.
2.How to avoid adverse reactions?
① Control intensity reasonably, and strenuous exercise is strictly prohibited within 24 hours after treatment.
② Hot compresses are strictly prohibited within 24 hours after treatment.
3.How many treatment sessions could cure the indications?
It varies from the severity of the patient and should be diagnosed by a professional therapist.

Effective Solution for Chronic Pain
This ESWT shockwave therapy machine treats conditions through particular radial, pneumatically generated, low-energy acoustic waves or pressure pulses. It is a non-invasive, non-surgical, and non-pharmacological treatment for musculoskeletal disease and chronic pain in the shoulder, back, heel, knee, or elbow.
It also can be used for selective treatment to relax muscles, relieve muscle pain, and improve circulation. After shockwave treatment is completed, use the vibration handpiece and new transmitters to massage along the direction of the muscle bundle to promote lymphatic fluid drainage.
