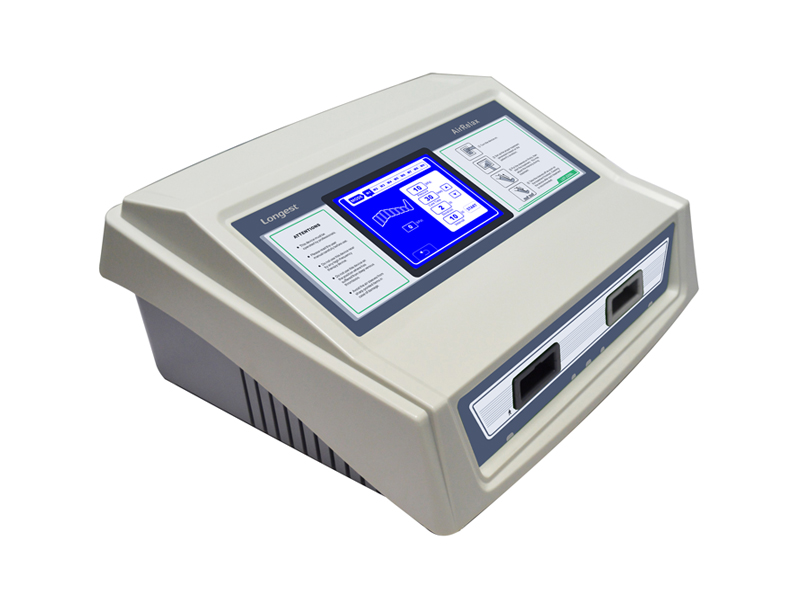

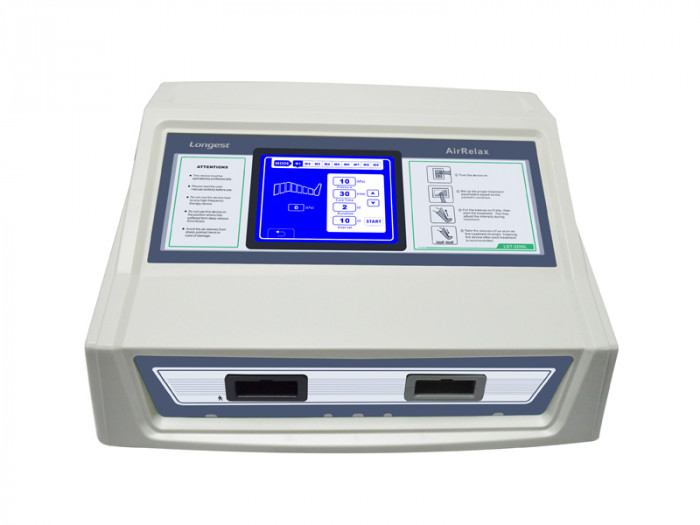

LONGEST Air Compression Therapy LGT-2200L

LGT-2200L is a compression therapy device comprised of an intermittent pneumatic controller, sleeves with 8-chamber, 4-chamber, DVT chamber combined, and connectable hose. It's a sequential pneumatic pressure system that through program-controlled inflation and deflation of the sleeves covered in arms, legs, waist, and back to realize the therapeutic effect. The working principle is the air inflating and deflating the sleeve sequentially to develop the circulating pressure on the human body. The inflation and deflation of the sleeves enhance the backflow of venous blood and lymph, which can improve the blood circulation of diseased areas. Squeezing the proximal and distal limbs to promote blood circulation lymphatic system and improve body microcirculation. This will lead to a series of beneficial effects such as improving the function of peripheral blood vessels, removing the edema, accelerating the healing process, and preventing Muscular Dystrophy. Besides, it can prevent thrombus, reduce limb drops, and this kind of disease that is related to blood and lymph circulation directly or indirectly.

Clinic purpose: Therapeutic and Rehabilitation

Suitable places: Clinic and hospital

Description

Description

Features

Gradient pressure setting (100%, 85%, 70%, 60%)
The pressure of every chamber adjustable
Every chamber can be closed before the treatment
Durable & easy-use sleeves Pressure unit switchable between and kPa
User-friendly interface–touch screen & easy-to-use, just a few steps to finish your setting
Overlapping air chambers generate a gliding pressure wave with high efficiency
Gentle inflation and deflation Real-time pressure, time, and inflation part monitoring (visible in the interface)
Durable & easy-use sleeves Pressure unit switchable between and kPa

Application

Prophylaxis of Deep vein thrombosis(DVT) (Post-stroke deep vein thrombosis, Post-traumatic deep vein thrombosis)
Prophylaxis and treatment of edema (Chronic venous edema, Lymphedema, Post-mastectomy lymphedema)

♦ Contraindications include:
The treatment area joint instability due to various reasons
Treatment area with deep vein thrombosis (DVT)
Incomplete healing of fracture inside the treatment area joint
Treatment area with bone joint tuberculosis
Treatment area with tumor
Patient with any open wounds, pressure ulcers, broken skin, and any other potential infection risks
Patient with complex regional pain syndrome and vascular impairment
Other patients that doctors think not suitable use this device

Technical Specification

Chambers	8
Compression Mode	18(Including 3 DVT modes + 6 four chambers modes + 9 eight chambers mode
Time Range	1min – 99min
Pressure Range	40 – 190 mmHg
Interface	5.7” touch screen
Dimension	393(L)×366(W)×194(H) cm
Weight	10kg

Accessories

STANDARD ACCESSORIES

8-chamber Arm Sleeve	2pcs
8-chamber Leg Sleeve	2pcs

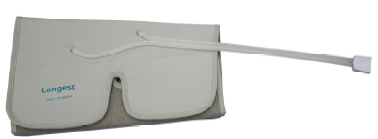

2-chamber calf sleeve (reusable)	1pc
1-chamber foot sleeve (reusable)	1pc
Hoses for 4-chamber sleeves	1pc

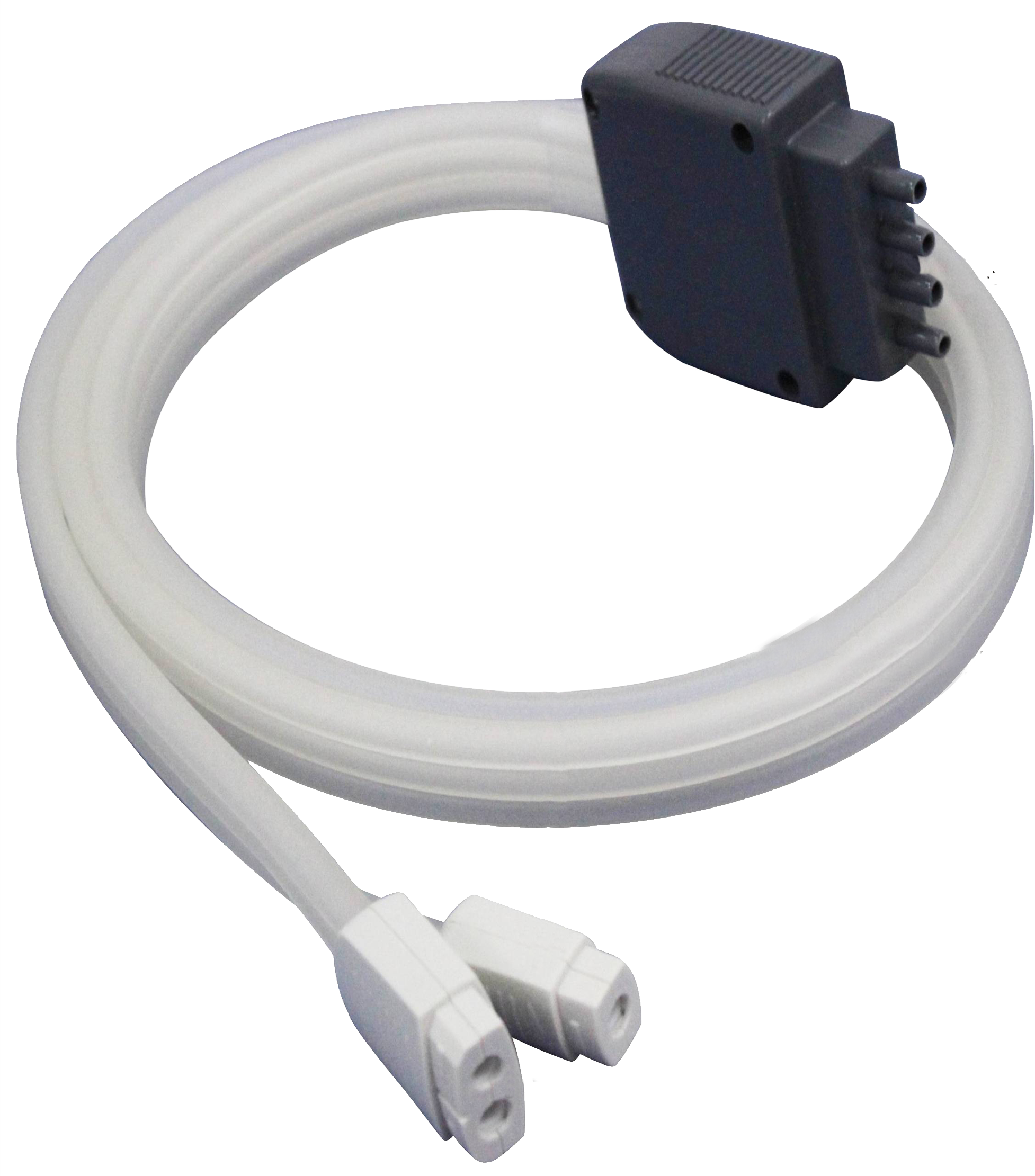

Hoses for 8-chamber sleeves	1pc

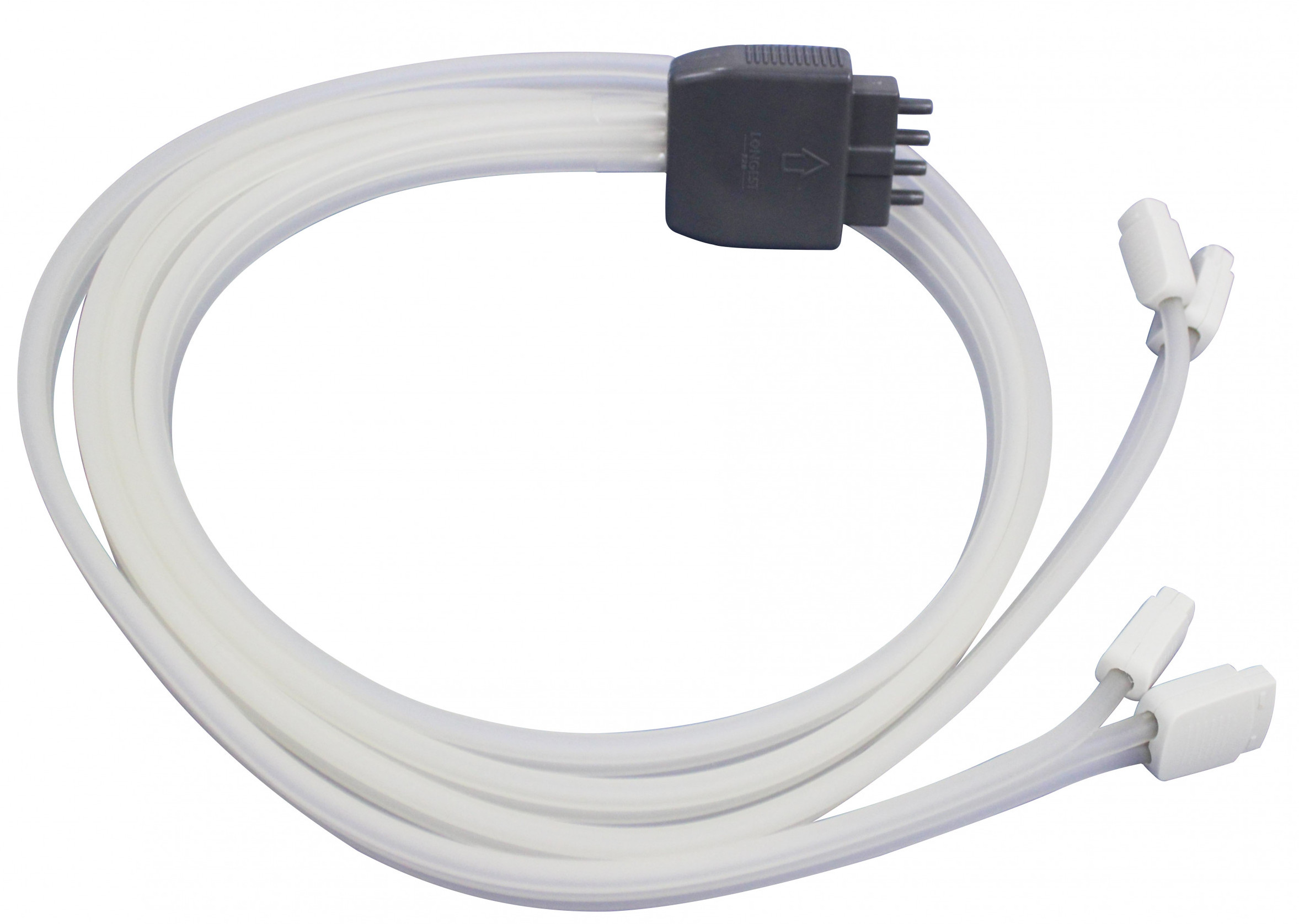

Hoses for DVT sleeves	1pc

OPTIONAL ACCESSORIES

4-chamber Arm Sleeve	1pc
4-chamber Leg Sleeve	1pc
Full Body Cuff	1pc

Video

1. What should we know before using it?
LGT-2200L is intended exclusively for use by medical specialists and is only allowed to be used by qualified and instructed medical persons in a clinical environment. Specialists must have the basic physical and cognitive prerequisites such as vision, hearing, and literacy. Also, the basic function of the upper extremities is expected.

2. What is the benefit of LGT-2200L?
Compression therapy device comprised of main unit, sleeves, and connection hose. The working principle is the air inflating and deflating the sleeve sequentially to develop the circulating pressure on the human body. Squeezing the proximal and distal limbs to promote blood circulation lymphatic system and improve body microcirculation. Besides, it can prevent thrombus, reduce limb drops, and this kind of disease that is related to blood and lymph circulation directly or indirectly.

3. How many treatment sessions could cure the indications？
It varies from the severity of the patient and should be confirmed by the professional therapist.
