Description

Features & Benefits

  • The dual-channel design allows treating of two patients at the same time
  • Built-in premium air compressor ensures the stable output of shockwaves and effective & low-noise treatment
  • 10’’color touch screen improves user experience

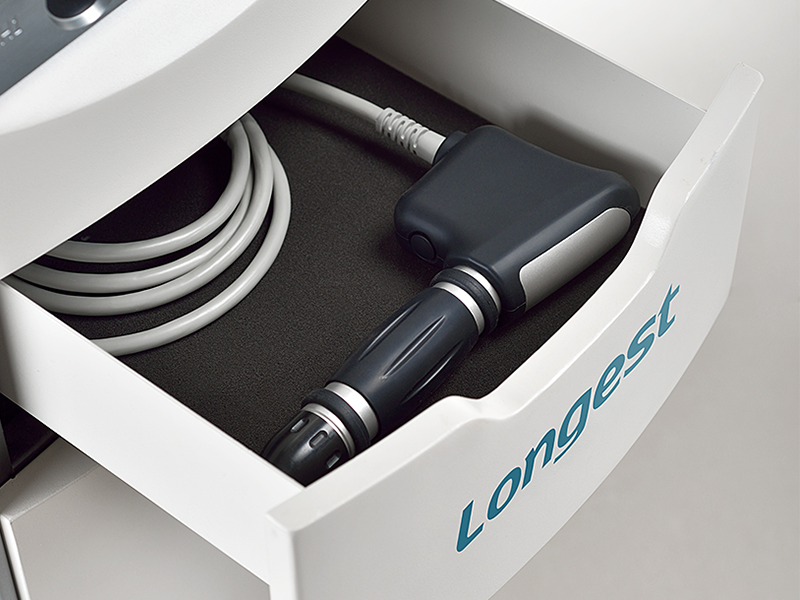

  • Large storage space with a cabinet
  • High-quality workmanship and components ensure a long-lasting beautiful appearance and long service life
  • Well-designed and manufactured handpiece: ergonomic & user-friendly, with reduced reverse shock, easy to maintain, and durable.
  • Preset protocols with imaged-based treatment guidance, providing fast therapy options to improve efficiency.
  • User-defined protocols to suit more specific needs
  • Multilanguage interface options (English, German, French, Italian, Spanish)
  • Free software updates via USB
  • Patient management with treatment history
  • VAS score for better pain management
  • Certification: TGA, CE
  • 2 years of warranty
  • OEM available

INDICATIONS

  • Supraspinatus
  • Tendinitis
  • Calcific
  • Tennis elbow
  • Golf elbow
  • Jumpers knee
  • Trochanter pain syndrome
  • Patellar tendonitis
  • Tibial stress syndrome
  • Achilles tendonitis
  • Plantar fasciitis treatment

CONTRAINDICATIONS

ESWT is not suitable to use under the below circumstances:

  • Pregnant woman
  • Post-operation (wound, exudation)
  • Osteoporosis
  • Growing children
  • Coagulation defects
  • Bleeding tendency
  • Patient with a pacemaker
  • Neoplasms
  • Cutaneous infections
  • Lung area
  • Over the spine area
  • Cortisone therapy up to 6 weeks before the first treatment
  • Mental disorder (unable to express or have difficulty in the communication)
Channel2
CompressorIntegrated air compressor (KNF from Germany)
Interface10.4″ LCD touch screen
Pressure Range1.0 – 5.0 bar (adjustable by 0.1 bar)
Frequency Range1 – 22 Hz (adjustable by 1 Hz)
Pulse1-3000 (step by 100 pulses)
Dimension54.2(L) × 44.5(W) × 112.0(H) cm
Standard Weight58.0 kg
Preset ProtocolsYes
User-defined ProtocolsYes
Languages6 (Chinese, English, German, French, Italian & Spanish)

STANDARD ACCESSORIES

PictureNameQuantity
General Handpiece2 pc
6 mm Acupuncture Transmitter1 pc
15 mm Deep Transmitter1 pc
15 mm Focus Transmitter1 pc
15mm Radial Transmitter2 pc
20mm Radial Transmitter2 pc
Revision Kit4 pcs
General Handpiece Kit2 set


OPTIONAL ACCESSORIES

PictureNameQuantity
36 mm Radial Transmitter1 pc

1. What is the difference between ultrasound and shock wave therapy?

The ultrasound treatment is gentler compared to shock wave therapy. And it only consists of one frequency, while a shock wave is a wave group made up of various frequencies, wavelengths, and speeds.

Shock wave treatment is more effective and doesn’t need everyday use, but ultrasound is required to use every day for better results.

2. How to avoid adverse reactions?

① Control intensity reasonably, and strenuous exercise is strictly prohibited within 24 hours after treatment.

② Hot compresses are strictly prohibited within 24 hours after treatment.

3. How many treatment sessions could cure the indications?

It varies from the severity of the patient and should be diagnosed by a professional therapist.
