Description

LGT-2320ME is an advanced neuromuscular muscle stimulation machine designed with a mobile electrode for more convenient and precise treatment.

  • “12+1” channels: 12 channels for electrode pads and 1 channel for mobile electrode wand, treating different body parts and multiple patients simultaneously (up to 3 patients get treated at the same time )to improve efficiency and increase productivity

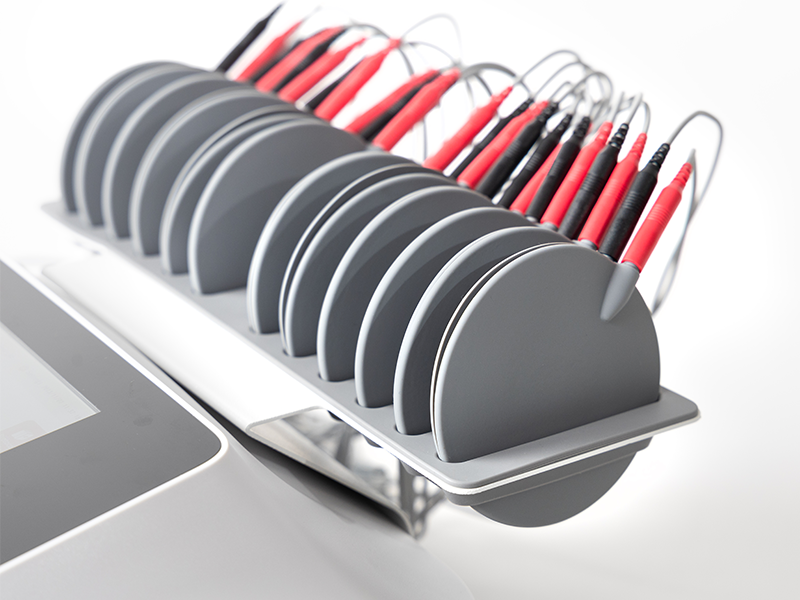

  • Wire rack: neatly organize electrode wires during storage and transportation, promoting caregiver convenience
  • 7-inch touchscreen: easy to operate
  • Preset protocols with image guidance: standardize the treatment and ensure consistency
  • Custom protocols: meet more clinical needs
  • Hand switch: stop/start/pause a treatment easily
  • Rotary knob: quick adjustment of parameters

Benefits of the treatment

  • Prevent and treat muscle atrophy
  • Relieve muscle spasms
  • Reduce pain
  • Re-educate muscle functions
  • Increase joint range of motion
  • Treat dysphagia

Dimensions: 450×405×200 mm

Weight: 5.1kg

Interface: 7-inch touchscreen

Waveform: Biphasic Symmetrical Square Wave

Pulse Width: Max.400μs

Pulse Frequency: Max. 120Hz

Frequency Modulation: Normal, Alternate, Sweep, Random

Surge Modulation: Ramp-up time, Hold time, Ramp-down time, Interval time
