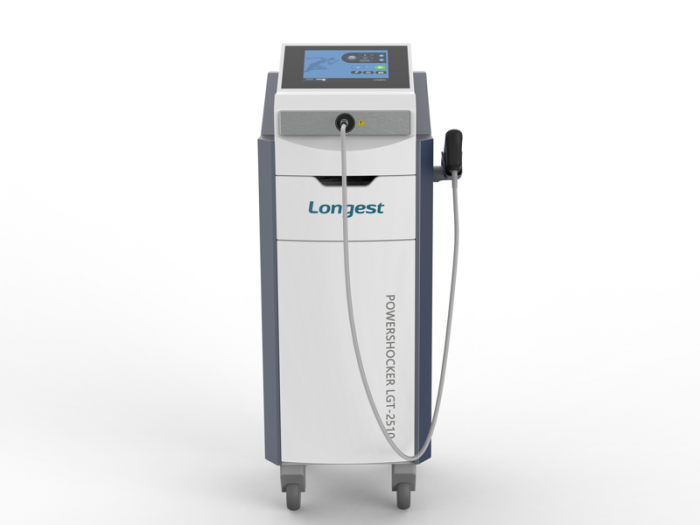

Description

High-Quality Components

Silent compressor: integrated KNF air compressor, providing you with quiet and comfortable treatment

Skillful accessories: high-quality workmanship of bullets and metal pipes, enabling the device to produce 2 million shocks

Various transmitters: 6 ballistic pneumatic transmitters, including Radial, Acupuncture, Deep and Focus, covering multiple sizes

Air tank: invisible design ensuring stable output and portable style

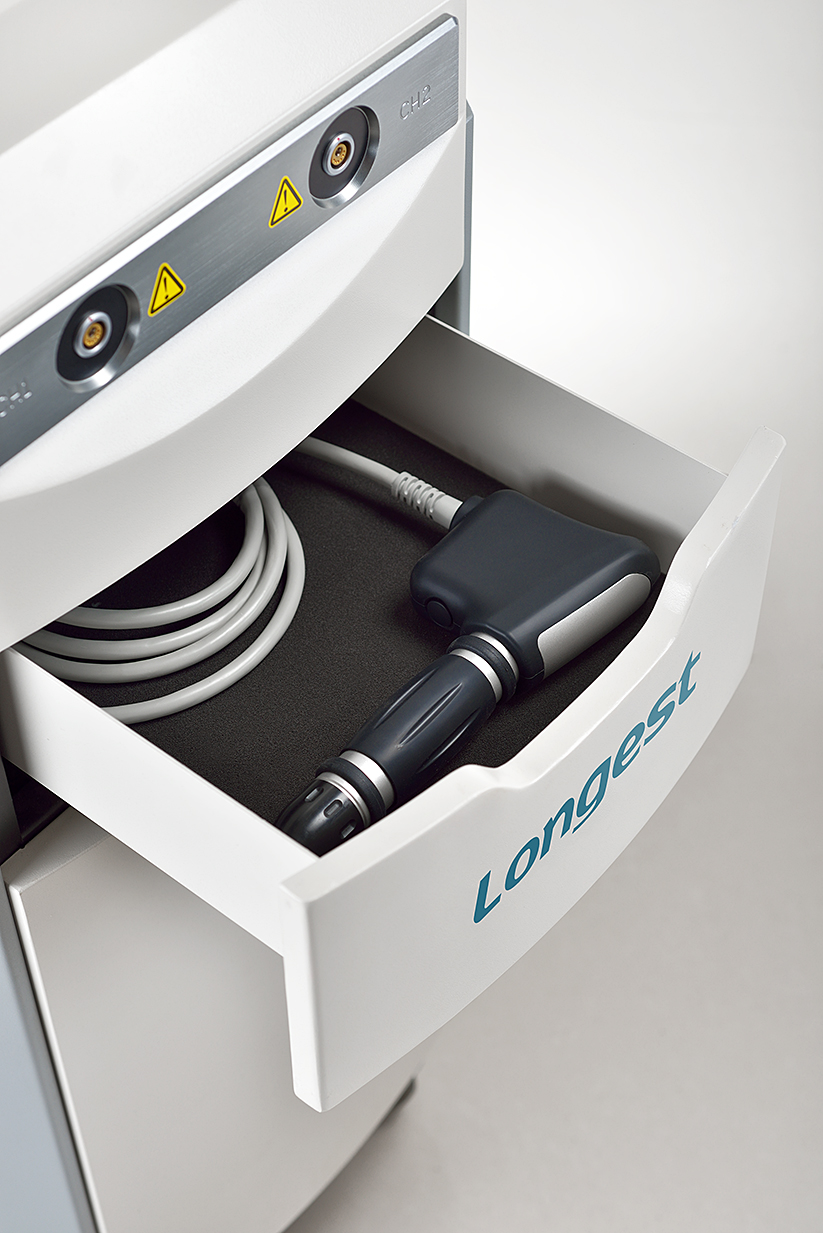

Ergonomic Handpiece

Comfort: special ergonomic grip and elimination of backward shocks bringing you the most comfortable experience on the market

Safety: the safety switch is set in handpiece button, and the working state of the interface is locked, effectively avoiding misoperation

Convenience: the removable handpiece is convenient for daily cleaning and maintenance


Multiple Functions via USB

History download: user file PDF output supported, device storage up to 5,000 documents

Software-update: unlimited upgrades software by USB disk


Visualized Therapy

User file downloading: patient database PDF output providing an overall review of treatment

VAS system: pain assessment with curve diagram making all sessions at a glance


Preset & User-defined Protocols

Preset protocols: image-based treatment guidance, parameters based on clinical tests, one-touch-start treatment

User-defined protocols: support protocol setup, parameter adjustment & settings renaming


OEM Available, After-sale Warranty

Two years warranty.

The device is customizable. You can customize the product in various ways, but the MOQ is required. Please contact us for more information.




INDICATIONS

  • Supraspinatus
  • Tendinitis
  • Calcific
  • Tennis elbow
  • Golf elbow
  • Jumpers knee
  • Trochanter pain syndrome
  • Patellar tendonitis
  • Tibial stress syndrome
  • Achilles tendonitis
  • Plantar fasciitis treatment

CONTRAINDICATIONS

Patients with the following disease are forbidden to use:

  • Pregnant woman
  • Post-operation (wound, exudation)
  • Osteoporosis
  • Growing children
  • Coagulation defects
  • Bleeding tendency
  • Patient with a pacemaker
  • Neoplasms
  • Cutaneous infections
  • Lung area
  • Spine
  • Cortisone therapy up to 6 weeks before the first treatment
  • Mental disorder (unable to express or have difficulty in communication)



Channel1
CompressorIntegrated air compressor (KNF from Germany)
Interface10″ LCD touch screen
Pressure Range1.0 – 5.0 bar (adjustable by 0.1 bar)
Frequency Range1 – 22 Hz (adjustable by 1 Hz)
Pulse1-3000 (step by 100 pulses)
Dimension54.2(L) × 44.5(W) × 112.0(H) cm
Standard Weight56.0 kg
Preset ProtocolsYes
User-defined ProtocolsYes
Languages6 (Chinese, English, German, French, Italian & Spanish)

STANDARD ACCESSORIES

PictureNameQuantity
General Handpiece1 pc
6 mm Acupuncture Transmitter1 pc
15 mm Deep Transmitter1 pc
15 mm Focus Transmitter1 pc
15mm Radial Transmitter1 pc
Revision Kit2 pcs
General Handpiece Kit1 set


OPTIONAL ACCESSORIES

PictureNameQuantity
20mm Radial Transmitter1 pc
36 mm Radial Transmitter1 pc

1.What is the difference between ultrasound and shock wave therapy?

The ultrasound treatment is gentler compared to shock wave therapy. And it only consists of one frequency, while a shock wave is a wave group made up of various frequencies, wavelengths, and speeds.

Shock wave treatment is more effective and doesn’t need everyday use, but ultrasound is required to use every day for better results.

2.How to avoid adverse reactions?

① Control intensity reasonably, and strenuous exercise is strictly prohibited within 24 hours after treatment.

② Hot compresses are strictly prohibited within 24 hours after treatment.

3.How many treatment sessions could cure the indications?

It varies from the severity of the patient and should be diagnosed by a professional therapist.
